40 Feet High Cube Reefer Container
Reefer containers and Iso containers enable a gentle transport or storage of food and other goods which require a certain temperature during transportation in order to remain intact.
25
2896 mm
2438 mm
12192 mm
Technical information
Measurements
Exterior dimensions: L 12192 mm x W 2438 mm x H 2896 mm
Interior dimensions: L 12032 mm x W 2352 mm x H 2698 mm
Door dimensions: L 2340 mm x W 2585 mm
Capacity: 76,4 m³
European pallets: 25
Characteristics
Size:
- 40 Feet HC
Condition:
- New
Year of construction:
- 2024
Badge: Valid CSC Plate
Location:
- Hamburg

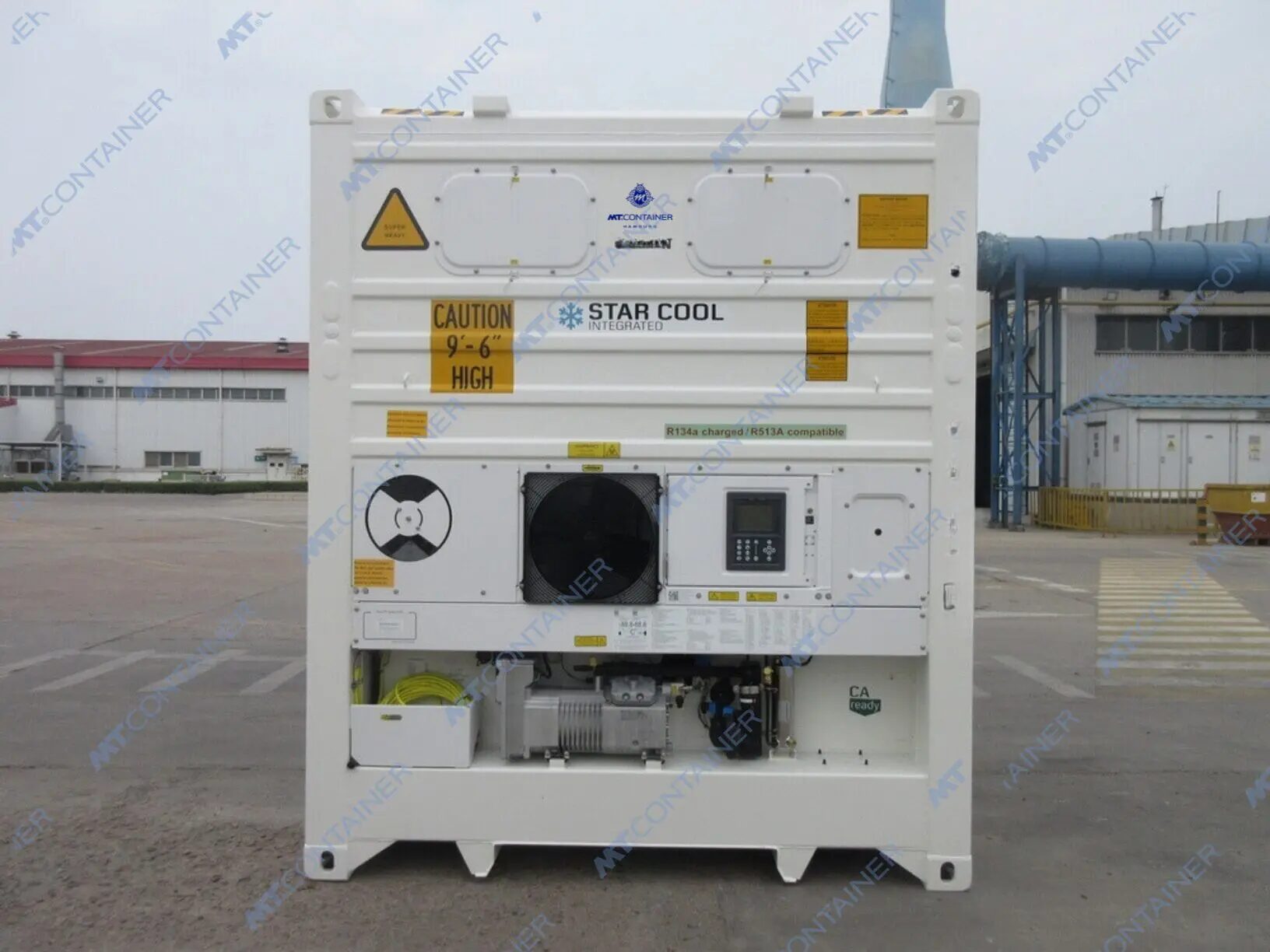

Cooling capacity and power connection
Temperature:
Refrigerant: R-134a and also with the new R-513a coolant comparible
Power connection: 380V/32 Amper
Operating voltage:
Power: 6-10 kW/h
Aggregate volume: distance of 1m: 63-78 dB
Further Information
Empty weight: 4550 kg
Additional load: 29450 kg
Total weight: 34000 kg
ISO construction type code: 45R1
ISO group code: 45RT
Product information
wind-
and waterproof
Steel frame,
stainless steel doors,
aluminium base
can be painted
according to
/ customer wishes
Light installation
and electronic fittings
possible
PVC lamella curtain
on request
Access ramp
on request
Container support
possible
Accessible via lift
and pallet trucks
